Der Zylindertank für Multiventil, der mit einem ringförmigen auf der linken oder rechten Seite des Tanks befindlichen Armaturstutzen integriert ist, verwendet zur Aufbewahrung des flüssigen Propan/Butan-Gemisches, dient zum Betrieb von Motoren in PKWs, Lieferwagen und LKWs.
Die Zylindertanks werden in Fahrzeugen verwenden, in denen es nicht möglich ist, einen Radmuldentank einzubauen (es fehlt die entsprechende Ersatzradmulde, z.B. Honda CRV – Ersatzrad an der Tür des Fahrzeugs) oder wenn der Fahrer sowohl ein Ersatzrad als auch einen Gastank haben will. Sie werden als ein Teil des Fahrgestells am Tragrahmen des Fahrzeugs montiert.
Der Tank ist gemäß der UN/ECE-Regelung Nr. 67.01 hergestellt und kann mit verschiedener Armatur verwendet werden:
80% Tankventil
Kraftstoffanzeiger
Sicherheitsventil
Serviceabflussventil
Kraftstoffpumpe
Multiventil
Multiventilgehäuse
|

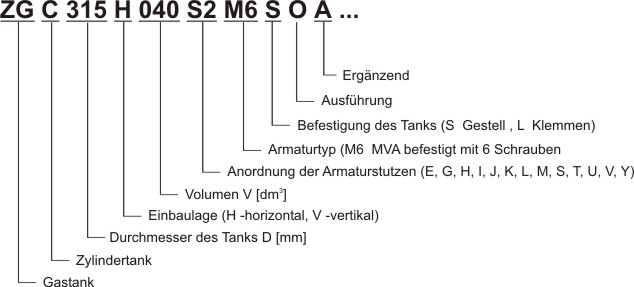

Grundcode |
Länge L
|
Volumen V
|
Durchmesser D
|
Gewicht
|
Gestell – Code |
Genehmigung Nr. |
|
ZGC200H005O7M6LOA9 ZGC200V005J7M6LOA9 ZGC200H007S2M6SOA9 ZGC200H010S2M6SOA9 ZGC200G015S2M6SOA9 ZGC200H020S4M6SOA9 ZGC200H025S4M6SOA9 ZGC200H030S4M6SOA9 ZGC200H035S4M6SOA9 ZGC200H040S4M6SOA9 ZGC200H045S4M6SOA9 ZGC200H050S4M6SOA9
|
180 180 250 350 512 667 822 980 1132 1287 1443 1573
|
4,7 4,7 6,9 10 15 20 25 30 35 40 45 50
|
200 200 200 200 200 200 200 200 200 200 200 200
|
4,0 4,0 4,5 5,5 7,5 9,0 11,0 12,5 14,5 16,0 18,0 19,5
|
- - ZGC200007SAK ZGC200010SAK ZGC200015SAK ZGC200020SAK ZGC200025SAK ZGC200030SAK ZGC200035SAK ZGC200040SAK ZGC200045SAK ZGC200050SAK
|
|
|
ZGC244H006O7M6LOA9 ZGC244V006J7M6LOA9 ZGC244H011S2M6SOA9 ZGC244H015S2M6SOA9 ZGC244H020S2M6SOA9 ZGC244H025S2M6SOA9 ZGC244H030S4M6SOA9 ZGC244H035S4M6SOA9 ZGC244H042S4M6SOA9 ZGC244H045S4M6SOA9 ZGC244H050S4M6SOA9 ZGC244H052S4M6SOA9 ZGC244H055S4M6SOA9 ZGC244H060S4M6SOA9 ZGC244H065S4M6SOA9 ZGC244H070S4M6SOA9
|
180 180 270 370 486 590 704 816 966 1036 1146 1191 1256 1366 1466 1576
|
6,4 6,4 10,5 15 20 25 30 35 42 45 50 52 55 60 65 70
|
244 244 244 244 244 244 244 244 244 244 244 244 244 244 244 244
|
4,5 4,5 5,5 7,0 8,5 10,0 11,5 13,0 15,0 15,5 17,0 18,0 18,5 20,0 21,5 23,0
|
- - ZGC244011SAK ZGC244015SAK ZGC244020SAK ZGC244025SAK ZGC244030SAK ZGC244035SAK ZGC244042SAK ZGC244045SAK ZGC244050SAK ZGC244052SAK ZGC244055SAK ZGC244060SAK ZGC244065SAK ZGC244070SAK
|
|
|
ZGC270H008O7M6LOA9 ZGC270V008J7M6LOA9 ZGC270H010T7M6LOA9 ZGC270V010J7M6LOA9 ZGC270H014S2M6SOA9 ZGC270H020S2M6SOA9 ZGC270H025S2M6SOA9 ZGC270H030S2M6SOA9 ZGC270H035S4M6SOA9 ZGC270H040S4M6SOA ZGC270H045S4M6SOA ZGC270H050S4M6SOA9 ZGC270H055S4M6SOA9 ZGC270H060S4M6SOA9 ZGC270H070S4M6SOA9 ZGC270H080S4M6SOA9
|
180 180 230 230 300 408 500 591 670 768 858 951 1045 1125 1307 1489
|
7,6 7,6 10,4 10,4 14,3 20 25 30 35 40 45 50 55 60 70 80
|
270 270 270 270 270 270 270 270 270 270 270 270 270 270 270 270
|
5,0 5,0 5,5 5,5 6,5 8,0 9,5 11,0 12,0 13,5 15,0 16,0 17,5 18,5 21,5 24,00
|
- - - - ZGC270014SAK ZGC270020SAK ZGC270025SAK ZGC270030SAK ZGC270035SAK ZGC270040SAK ZGC270045SAK ZGC270050SAK ZGC270055SAK ZGC270060SAK ZGC270070SAK ZGC270080SAK
|
|
|
ZGC300H011O7M6LOA9 ZGC300V011J7M6LOA9 ZGC300H015T7M6LOA9 ZGC300V015J7M6LOA9 ZGC300H021S2M6SOA9 ZGC300H025S2M6SOA9 ZGC300H030S2M6SOA9 ZGC300H035S2M6SOA9 ZGC300H040S2M6SOA ZGC300H045S4M6SOA9 ZGC300H050S4M6SOA ZGC300H055S4M6SOA9 ZGC300H060S4M6SOA9 ZGC300H065S4M6SOA9 ZGC300H070S4M6SOA9 ZGC300H080S4M6SOA9 ZGC300H090S4M6SOA9
|
200 200 270 270 350 428 499 570 641 712 783 854 925 996 1067 1214 1351
|
10,6 10,6 15,4 15,4 20,9 25 30 35 40 45 50 55 60 65 70 80 90
|
300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300 300
|
6,0 6,0 7,0 7,0 8,0 9,0 10,5 12,0 13,0 14,0 15,5 16,5 17,5 19,0 20,0 22,0 24,5
|
- - - - ZGC300021SAK ZGC300025SAK ZGC300030SAK ZGC300035SAK ZGC300040SAK ZGC300045SAK ZGC300050SAK ZGC300055SAK ZGC300060SAK ZGC300065SAK ZGC300070SAK ZGC300080SAK ZGC300090SAK
|
|
|
ZGC315H011O7M6LOA9 ZGC315V011J7M6LOA9 ZGC315H015T7M6LOA9 ZGC315V015J7M6LOA9 ZGC315H020S2M6SOA9 ZGC315H025S2M6SOA9 ZGC315H030S2M6SOA9 ZGC315H035S2M6SOA9 ZGC315H040S2M6SOA ZGC315H045S4M6SOA ZGC315H050S4M6SOA ZGC315H055S4M6SOA ZGC315H060S4M6SOA ZGC315H065S4M6SOA ZGC315H070S4M6SOA9 ZGC315H075S4M6SOA9 ZGC315H080S4M6SOA9 ZGC315H090S4M6SOA9 ZGC315H100S4M6SOA9 ZGC315H110S4M6SOA9
|
200 200 254 254 322 389 454 522 589 654 719 784 854 919 984 1051 1119 1249 1384 1514
|
10,6 10,6 15 15 20 25 30 35 40 45 50 55 60 65 70 75 80 90 100 110
|
315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315 315
|
7,0 7,0 8,0 8,0 9,0 10,5 12,0 13,0 14,5 16,0 17,0 18,5 20,0 21,0 22,5 23,5 25,0 27,5 30,5 33,0
|
- - - - ZGC315020SAK ZGC315025SAK ZGC315030SAK ZGC315035SAK ZGC315040SAK ZGC315045SAK ZGC315050SAK ZGC315055SAK ZGC315060SAK ZGC315065SAK ZGC315070SAK ZGC315075SAK ZGC315080SAK ZGC315090SAK ZGC315100SAK ZGC315110SAK
|
|
|
ZGC360H017O7M6LOA9 ZGC360V017J7M6LOA9 ZGC360H019T7M6LOA9 ZGC360V019J7M6LOA9 ZGC360H024T7M6LOA9 ZGC360V024J7M6LOA9 ZGC360H028S2M6SOA9 ZGC360H031S2M6SOA9 ZGC360H040S2M6SOA ZGC360H050S2M6SOA ZGC360H055S2M6SOA ZGC360H060S2M6SOA ZGC360H070S4M6SOA ZGC360H080S4M6SOA ZGC360H085S4M6SOA9 ZGC360H090S4M6SOA ZGC360H100S4M6SOA ZGC360H105S4M6SOA9 ZGC360H110S4M6SOA9 ZGC360H115S4M6SOA9 ZGC360H120S4M6SOA9 ZGC360H130S4M6SOA9 ZGC360H140S4M6SOA9 ZGC360H150S4M6SOA9 |
230 230 250 250 300 300 343 363 468 568 618 668 773 873 923 973 1073 1123 1173 1225 1275 1375 1475 1575 |
17 17 19 19 23,9 23,9 28,1 30,9 40 50 55 60 70 80 85 90 100 105 110 115 120 130 140 150 |
360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 360 |
8,5 8,5 9,0 9,0 10,0 10,0 11,0 11,5 14,0 16,5 17,5 18,5 21,0 23,0 24,5 25,5 28,0 29,0 30,0 31,5 32,5 34,5 37,0 39,0 |
- - - - - - ZGC360028SAK ZGC360031SAK ZGC360040SAK ZGC360050SAK ZGC360055SAK ZGC360060SAK ZGC360070SAK ZGC360080SAK ZGC360085SAK ZGC360090SAK ZGC360100SAK ZGC360105SAK ZGC360110SAK ZGC360115SAK ZGC360120SAK ZGC360130SAK ZGC360140SAK ZGC360150SAK |
|
|
ZGC400H020O7M6LOA9 ZGC400V020J7M6LOA9 ZGC400H029T7M6LOA9 ZGC400V029J7M6LOA9 ZGC400H040S2M6SOA9 ZGC400H050S2M6SOA9 ZGC400H060S2M6SOA9 ZGC400H070S2M6SOA9 ZGC400H080S4M6SOA9 ZGC400H090S4M6SOA9 ZGC400H100S4M6SOA9 ZGC400H110S4M6SOA9 ZGC400H120S4M6SOA9 ZGC400H130S4M6SOA9 ZGC400H140S4M6SOA9 ZGC400H150S4M6SOA9 ZGC400H160S4M6SOA9 ZGC400H170S4M6SOB9 ZGC400H180S4M6SOB9 ZGC400H190S4M6SOB9 ZGC400H200S4M6SOB9
|
230 230 300 300 393 479 566 651 733 815 902 982 1067 1152 1232 1320 1405 1488 1568 1652 1737
|
20,3 20,3 28,7 28,7 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200
|
400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400 400
|
9,5 9,5 11,5 11,5 14,0 16,0 18,0 20,0 22,5 24,5 26,5 28,5 30,5 33,0 35,0 37,0 39,0 41,0 43,0 45,5 47,5
|
- - - - ZGC400040SAK ZGC400050SAK ZGC400060SAK ZGC400070SAK ZGC400080SAK ZGC400090SAK ZGC400100SAK ZGC400110SAK ZGC400120SAK ZGC400130SAK ZGC400140SAK ZGC400150SAK ZGC400160SAK ZGC400170SAK ZGC400180SAK ZGC400190SAK ZGC400200SAK
|
|
|
ZGC450H031O7M6LOA9 ZGC450V031J7M6LOA9 ZGC450H040T7M6LOA9 ZGC450V040J7M6LOA9 ZGC450H050S2M6SOA9 ZGC450H060S2M6SOA9 ZGC450H070S2M6SOA9 ZGC450H080S2M6SOA9 ZGC450H090S2M6SOA9 ZGC450H100S2M6SOA9 ZGC450H120S4M6SOA9 ZGC450H140S4M6SOA9 ZGC450H160S4M6SOA9 ZGC450H180S4M6SOB9 ZGC450H200S4M6SOB9 ZGC450H220S4M6SOB9 ZGC450H230S4M6SOB9 ZGC450H240S4M6SOB9 |
274 274 329 329 391 457 517 579 643 707 831 956 1081 1206 1331 1483 1583 1683 |
31,4 31,4 40 40 50 60 70 80 90 100 120 140 160 180 200 220 230 240 |
450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 450 |
14,5 14,5 16,0 16,0 18,0 20,5 22,5 24,5 26,5 28,5 33,0 37,0 41,0 45,0 50,0 53,5 55,5 57,5 |
- - - - ZGC450050SAK ZGC450060SAK ZGC450070SAK ZGC450080SAK ZGC450090SAK ZGC450100SAK ZGC450120SAK ZGC450140SAK ZGC450160SAK ZGC450180SAK ZGC450200SAK ZGC450220SAK ZGC450230SAK ZGC450240SAK |
