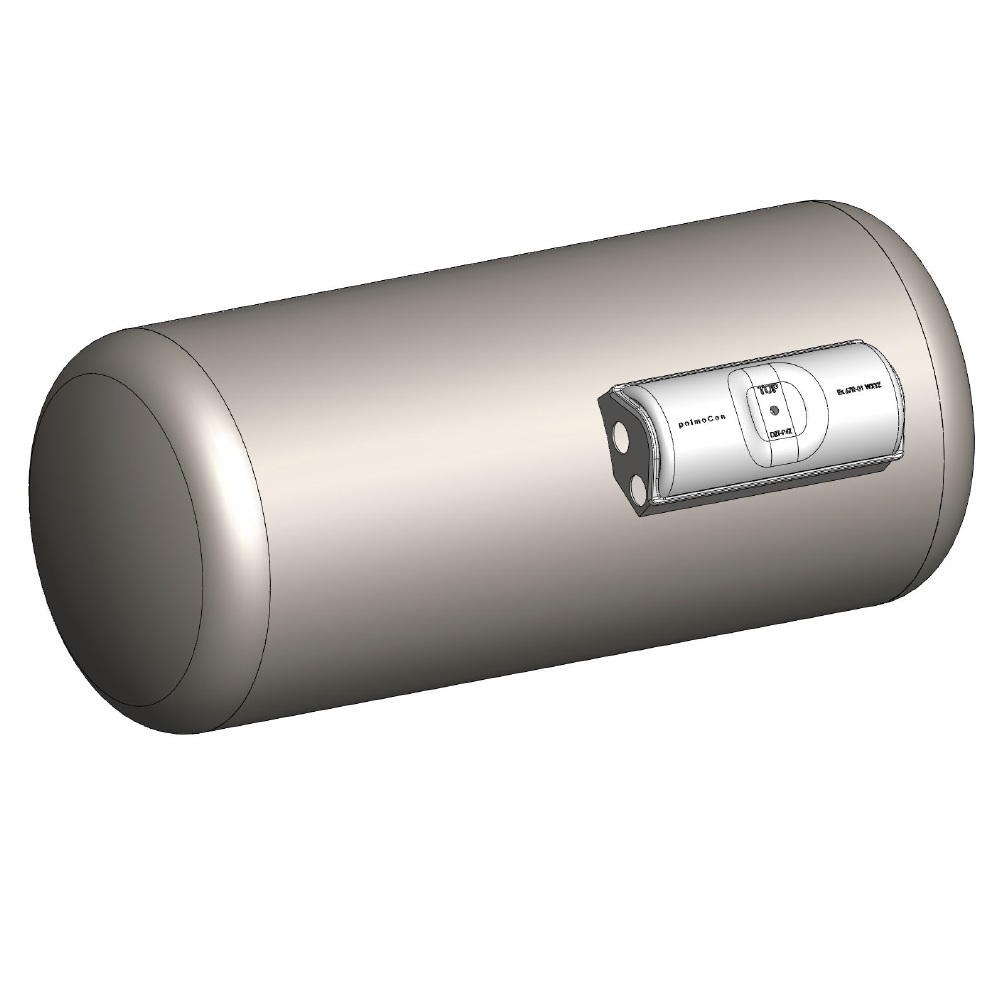

4-hole version of cylindrical LPG tanks. The valve plate enhances the functionality of the tank compared to traditional multivalve systems. Used for the storage of the fuel mixture of liquid propane-butane for petrol engines in cars, delivery vehicles and lorries.
Cylindrical tanks may be used in vehicles which do not allow for installation of toroidal tanks (no typical spare wheel recess, e.g. Honda CRV - spare wheel on the door) and also if the vehicle owner intends to have both spare wheel and gas tank. They are installed as chassis components, situated within the space of the vehicle frame.
The tank is produced in accordance with the Regulations No. ECE 67.01 and can be used with a variety of equipment:
80% stop valve
level indicator
pressure relieve valve
remotely controlled service valve with excess flow valve
fuel pump
multivalve

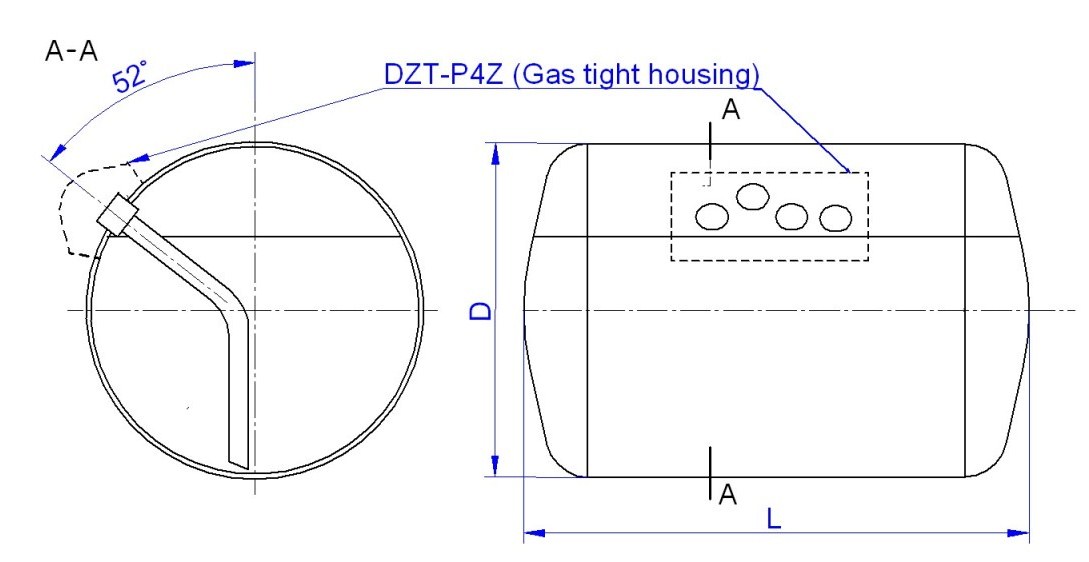

gas tight housing

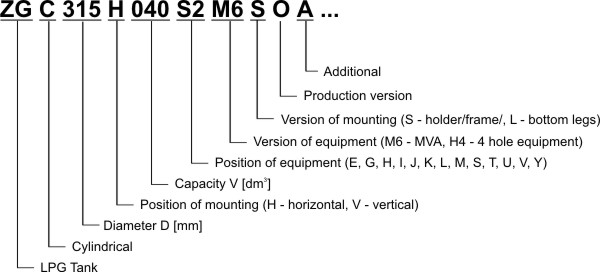

Code |
Lenght L
|
Capacity V
|
Diameter D
|
Weight
|
Homologation No. |
ZGC200H020S4H4SOA9 ZGC200H030S4H4SOA9 ZGC200H040S4H4SOA9 ZGC200H050S4H4SOA9
|
667 980 1287 1573
|
20 30 40 50
|
200 200 200 200
|
9,0 12,5 16,0 19,5
|
|
ZGC244H025S4H4SOA9 ZGC244H035S4H4SOA9 ZGC244H042S4H4SOA9 ZGC244H052S4H4SOA9
|
590 816 966 1191
|
25 35 42 52
|
244 244 244 244
|
10,0 13,0 15,0 18,0
|
|
ZGC270H025S4H4SOA9 ZGC270H030S4H4SOA9 ZGC270H040S4H4SOA9 ZGC270H050S4H4SOA9 ZGC270H060S4H4SOA9
|
500 591 768 951 1125
|
25 30 40 50 60
|
270 270 270 270 270
|
9,5 11,0 13,5 16,0 18,5
|
|
ZGC300H040S4H4SOA ZGC300H050S4H4SOA ZGC300H060S4H4SOA9 ZGC300H070S4H4SOA9 |
641 783 925 1067
|
40 50 60 70 |
300 300 300 300 |
13,0 15,5 17,5 20,0 |
|
ZGC315H030S4H4SOA9 ZGC315H040S4H4SOA9 ZGC315H050S4H4SOA9 ZGC315H060S4H4SOA9 ZGC315H070S4H4SOA9 ZGC315H080S4H4SOA9 ZGC315H090S4H4SOA9 ZGC315H100S4M6SOA9 ZGC315H110S4M6SOA9
|
454 589 719 854 984 1119 1249 1384 1514
|
30 40 50 60 70 80 90 100 110
|
315 315 315 315 315 315 315 315 315
|
12,0 14,5 17,0 20,0 22,5 25,0 27,5 30,5 33,0
|
|
ZGC360H040S4H4SOA9 ZGC360H050S4H4SOA9 ZGC360H060S4H4SOA9 ZGC360H070S4H4SOA9 ZGC360H080S4H4SOA9 ZGC360H090S4H4SOA9 ZGC360H100S4H4SOA9 ZGC360H110S4H4SOA9 ZGC360H120S4H4SOA9 ZGC360H130S4H4SOA9 ZGC360H140S4H4SOA9 ZGC360H150S4H4SOA9 |
468 568 668 773 873 973 1073 1173 1275 1375 1475 1575 |
40 50 60 70 80 90 100 110 120 130 140 150 |
360 360 360 360 360 360 360 360 360 360 360 360 |
14,0 16,5 18,5 21,0 23,0 25,5 28,0 30,0 32,5 34,5 37,0 39,0 |
|
ZGC400H090S4H4SOA9 ZGC400H100S4H4SOA9 ZGC400H110S4H4SOA9 ZGC400H120S4H4SOA9 ZGC400H130S4H4SOA9 ZGC400H140S4H4SOA9 ZGC400H150S4H4SOA9 ZGC400H160S4H4SOA9 ZGC400H170S4H4SOA9 ZGC400H180S4H4SOA9 ZGC400H190S4H4SOA9
|
815 902 982 1067 1152 1232 1320 1405 1488 1568 1652
|
90 100 110 120 130 140 150 160 170 180 190
|
400 400 400 400 400 400 400 400 400 400 400
|
24,5 26,5 28,5 30,5 33,0 35,0 37,0 39,0 41,0 43,0 45,5
|
|
ZGC450H120S4M6SOA9 ZGC450H140S4M6SOA9 ZGC450H160S4M6SOA9 ZGC450H180S4M6SOB9 ZGC450H200S4M6SOB9 ZGC450H220S4M6SOB9 ZGC450H240S4M6SOB9 |
831 956 1081 1206 1331 1483 1683 |
120 140 160 180 200 220 240 |
450 450 450 450 450 450 450 |
33,0 37,0 41,0 45,0 50,0 53,5 57,5 |
