MoreMo tanks have been designed to focus on maximum possible simplification of fitting process in vehicles. MoreMo tanks, allowing for simplified installation on vehicles, may be installed in 4 different ways: in a one-point (central screw cap), in two points (2 screws), in four points (4 clamps) or with a fastening ring.

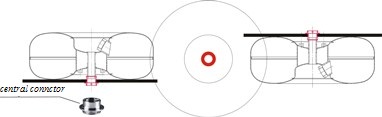

Methods of fitting:

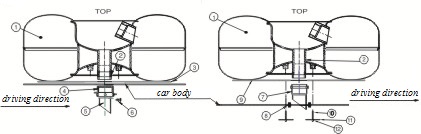

Ventilation:
Each type of the above mentioned fitting solution performs ventilation function too:
Legend:
1.LPG tank; 2.Central pipe (ventilation and fitting); 3.Protection disc; 4.Central connector(M48x1,5); 5.Ventilation pipe D 50mm; 6. d8 plug; 7.Ventilation pipe D60/D50mm; 8. Sealing ring; 9. M10 screw seat; 10. M10 bolt; 11.Bolt special washer, 12. M10 nut
