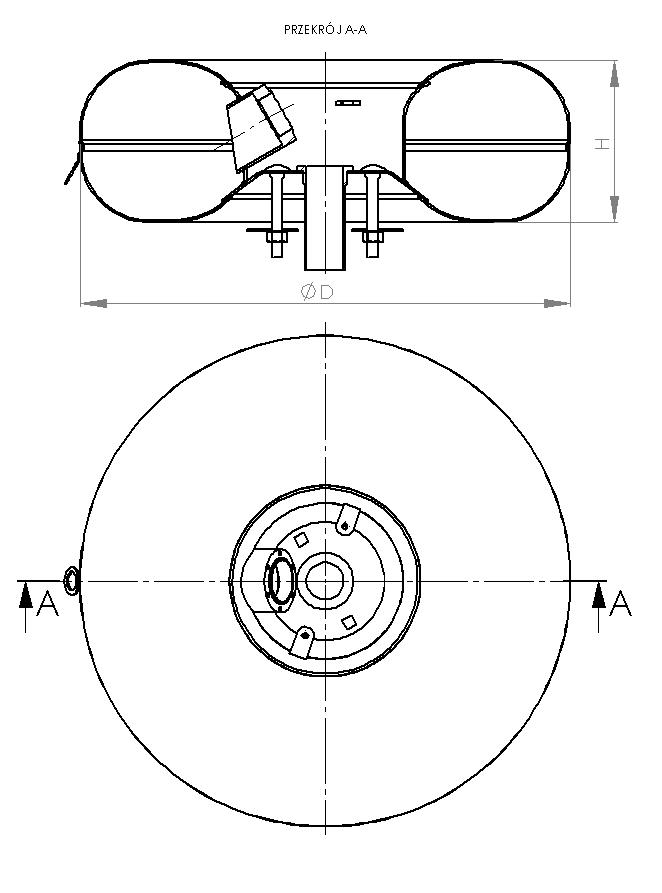

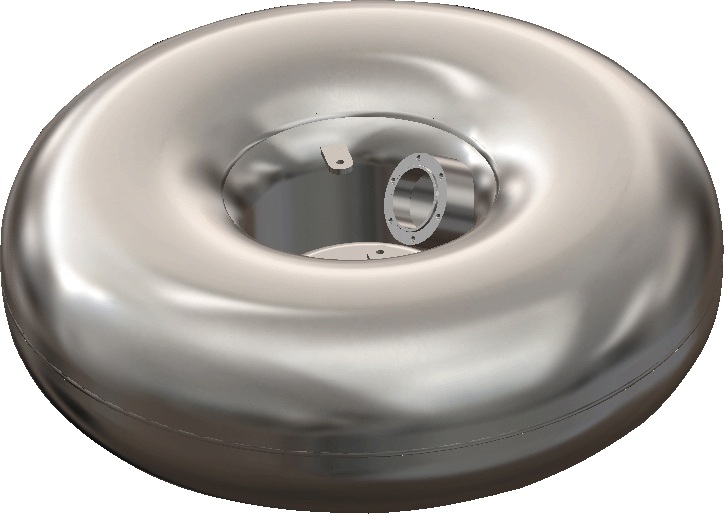

Toroidal tank Hit for multivalves (MVA), with internal multivalve flange at 30 °, mounted** on two bolts, usually installed in place of the spare tire.
Hit tanks may be used with a wide range of multivalves along with which they have been attested:
** Available also 4-point fitting: uper handles (FT), bottom legs (LT)..
|
Basic code [2-point fitting] |
Diameter D
|
Height H
|
Capacity V
|
Weight
|
Homologation No. |
|
ZGH565180W034M.. ZGH565190W036M.. ZGH565200W038M.. ZGH565220W042M.. ZGH565230W044M.. ZGH565240W046M..
|
565 565 565 565 565 565
|
180 190 200 220 230 240
|
33,5 35,5 37,5 41,5 43,5 45,5
|
17,0 17,5 18,0 19,0 19,5 20,0
|
|
|
ZGH580190W037M.. ZGH580200W039M.. ZGH580220W044M.. ZGH580230W046M.. ZGH580240W049M.. ZGH580250W051M..
|
580 580 580 580 580 580
|
190 200 220 230 240 250
|
36,5 38,5 43,5 45,5 48,5 50,5
|
18,0 18,5 19,5 20,0 20,5 21,0
|
|
|
ZGH600190W039M.. ZGH600200W043M.. ZGH600220W048M.. ZGH600230W050M.. ZGH600240W053M.. ZGH600250W054M.. ZGH600270W060M.. ZGH600300W068M..
|
600 600 600 600 600 600 600 600
|
190 200 220 230 240 250 270 300
|
38,5 42,5 47,5 49,5 52,5 53,5 59,5 67,5
|
19,0 19,5 20,5 21,0 21,5 22,0 23,0 24,5
|
|
|
ZGH630190W045M.. ZGH630200W048M.. ZGH630220W054M.. ZGH630230W056M.. ZGH630240W059M.. ZGH630250W060M.. ZGH630270W068M.. ZGH630300W076M..
|
630 630 630 630 630 630 630 630
|
190 200 220 230 240 250 270 300
|
44,5 47,5 53,5 55,5 58,5 59,5 67,5 75,5
|
20,5 21,0 22,0 22,5 23,0 24,0 24,5 26,0
|
|
|
ZGH650190W048M.. ZGH650200W051M.. ZGH650220W057M.. ZGH650230W060M.. ZGH650240W063M.. ZGH650250W065M.. ZGH650270W072M.. ZGH650300W081M..
|
650 650 650 650 650 650 650 650
|
190 200 220 230 240 250 270 300
|
47,5 50,5 56,5 59,5 62,5 64,5 71,5 80,5
|
25,5 26,0 27,5 28,0 28,5 29,0 30,5 32,5
|
|
|
ZGH680190W051M.. ZGH680200W055M.. ZGH680220W059M.. ZGH680230W063M.. ZGH680240W066M.. ZGH680250W070M.. ZGH680270W078M.. ZGH680300W088M..
|
680 680 680 680 680 680 680 680
|
190 200 220 230 240 250 270 300
|
50,5 54,5 58,5 62,5 65,5 69,5 77,5 87,5
|
26,5 27,0 28,5 29,5 30,0 30,5 32,0 34,0
|
|
|
ZGH720200W063M.. ZGH720220W070M.. ZGH720230W074M.. ZGH720240W077M.. ZGH720250W081M.. ZGH720270W089M.. ZGH720300W100M.. |
720 720 720 720 720 720 720 |
200 220 230 240 250 270 300 |
62,5 69,5 73,5 76,5 80,5 88,5 99,5 |
30,0 31,5 32,0 32,5 33,5 35,0 37,0 |
