About autogas we know everything


ELPIGAZ`s tanks can be equipped with:


     Multivalve (MVA)

Multivalve is a device that has in one body all the elements of fitting according with EKG ONZ 67R01 Regulations, such as: 80% stop filling valve, float group, safety valve and shut-off solenoid valve.

Toroidal MoreMo and Hit tanks can be equipped with internal MVA:



  • Fitted with 6 screwcs: internal (MVA 30°) and external (MVA 0o)

  • Available also with version prepared for assembly with big MVA type with LPG pump, equipped with D 100-120 mm flange

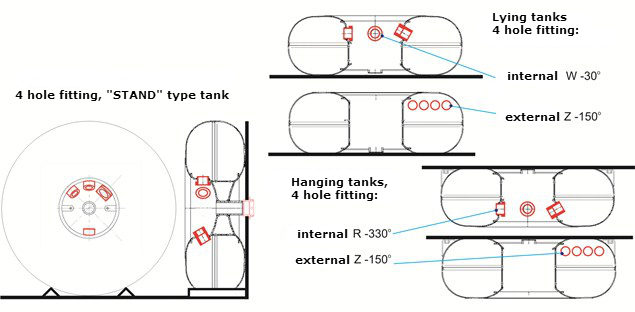

     4-hole (Dutch type)

The 4 hole fitting (Dutch type) of LPG tanks which is known to be one of the highest class tank`s equipment, is used in Holland, also in Belgium, Germany and Australia.



The 4 hole LPG tanks fitting includes valves: 80% stop filling valve, LPG level gauge, safety valve and shut-off solenoid valve.



In MoreMo and Hit tanks two types of the equipment elements are used:

    • inside the tank (W - 30o, R - 330o) – as opposed to traditional solutions where the whole fitting is placed on the external side of the tank, this solution is a significant increase of the tank capacity fitted in the wheel compartment,



    • Outside the tank (Z or F - 150o) – traditional solution with an additional protective cap for valves.
      Absolute NOVELTY ARE 4 hole MoreMo “STAND” type tanks, that ensure assembly in position not available in other solutions. This type of solution gives a much wider range of opportunities for vehicles to be converted into gas supplying.
